High quality medical metallic uncovered duodenal intestinal stent with two ball ends

You are here: Home » Products » Customized stent » High quality medical metallic uncovered duodenal intestinal stent with two ball ends

High quality medical metallic uncovered duodenal intestinal stent with two ball ends

Product Price $95-$295/ Piece

Type: Medical stent
Stent position: Intestinal stent
Material: Nitinol super elastic wire
Covering materials: silicone, PE, ePTFE, etc.
Stent diameter: 18mm-20mm
Bracket length: 60mm-80mm
Customization: support customization
Sample: Support sample
Certificate: CE ISO etc.

Model:
Intestinal stent

Availability:



Send email to us

Product Description

Overview

Intestinal stent

Characteristic

1.Continued gentle radial tensile force, effectively expands the stenosis, reducing the patients’ discomfort.

2.Imaging markers of the stents are clear visible under image equipment. Positioning is more accurate.

1.Pylorus stent

Usage

Used for malignant lesions caused by gastric outlet stenosis or obstruction, suitable for ministry of pyloric stenosis.

Characteristic

Conform to the pylorus of physiological anatomy port design.

Specification table (for pylorus stents):

Stent diameter (mm)	Port diameter (middle/near-end)	Length(mm)	Specification of Introducer system (Pipe diameter Fr x effective working length mm)	Head end shape
18	18/45	60/80	18Fr x1350	Single ball-single horn
20	20/45	60/80	18Fr x1350

Stent diameter

(mm)

Port diameter

(middle/near-end)

Length(mm)

Specification of Introducer system

(Pipe diameter Fr x effective working length mm)

Head end shape

18

18/45

60/80

18Fr x1350

Single ball-single horn

20

20/45

60/80

18Fr x1350

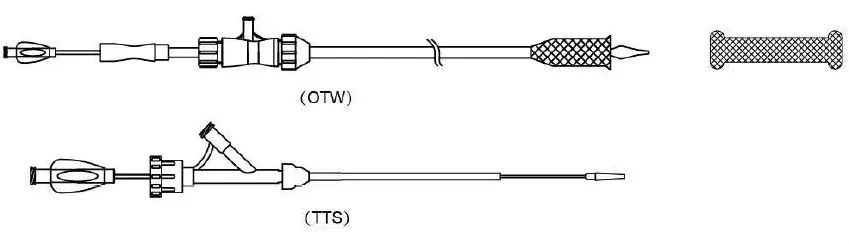

Stent System Structure Sketch

High Quality Self expanding Medical Intestinal Stent

2.Duodenal stent(OTW/TTS)

Usage

Used for duodenal stenosis or obstruction caused by malignant lesions.

Characteristics

Excellent flexibility, physiological bending conforms to the duodenum.

Specification table (for duodenal stents):

Stent diameter (mm)	Middle/end (mm)	Length(mm)	Specification of Introducer system (Pipe diameter Fr x effective working length mm)
18	18/25	60/80/100/120	18Fr x 1350(OTW)
20	20/25	60/80/100/120	18Fr x 1350(OTW)
18	18/25	60/80/100	10Fr x 1850(TTS)
20	20/25	60/80/100	10Fr x 1850(TTS)

Stent System Structure Sketch

High Quality Self expanding Medical Intestinal Stent

3.Colon stent

Usage

Used to treat colon narrow or obstruction caused by malignant lesions.

Characteristics

Spherical structure design, reduces the stimulation, not easy to shift.

Specification table (for colon stents):

Stent diameter (mm)	Port diameter (middle/near-end)	Length(mm)	Specification of Introducer system (Pipe diameter Fr x effective working length mm)
20	20/26	60/80/100	10Fr x2400(TTS)
25	25/30	60/80/100	10Fr x2400(TTS)
28	28/36	60/80/100	10Fr x 1000(OTW)
30	30/36	60/80/100	10Fr x 1000(OTW)

Stent System Structure Sketch

High Quality Self expanding Medical Intestinal Stent

4.Rectum stent (OTW/TTS)

Usage

Used to treat colon narrow or obstruction caused by malignant lesions.

Characteristics

Spherical structure design, reduces the stimulation, not easy to shift.

Specification table (for rectum stents):

Stent diameter (mm)	Port diameter (middle/near-end)	Length(mm)	Specification of Introducer system (Pipe diameter Fr x effective working length mm)
20	20/26	60/80/100	10Fr x2400(TTS)
25	25/30	60/80/100	10Fr x2400(TTS)
28	28/36	60/80/100	10Fr x 1000(OTW)
30	30/36	60/80/100	10Fr x 1000(OTW)

Stent System Structure Sketch

High Quality Self expanding Medical Intestinal Stent

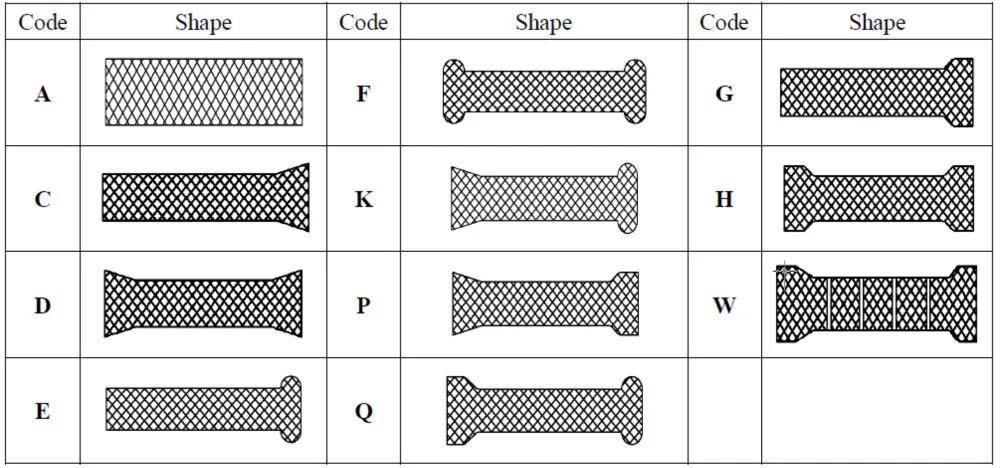

The code of stent shape(for intestinal stents)

High Quality Self expanding Medical Intestinal Stent

A.Straight ends F. Double ball ends G. Single cup end

C. Single tulip end K. Tulip end-ball end H. Double cup ends

D. Double tulip ends P. Tulip end-cup end W. Segmented with double cup ends

E. Single ball end Q. Cup end-ball end

FAQ

Q1: Are you a manufacturer or wholesale distributor?
A1: We are a manufacturer and also we do distribute other products if you need help, with superior quality and best price for you.

Q2: What kind of payment terms do you accept?
A2: We accept the payment terms as below: Master card VISA card Online Bank Payment T/T Payment)

Q3: Can I place a sample order first for testing？
A3: Yes, some of them can be free sample, you just need to pay for the transport fee. But some of them also need to pay for both, please confirm the details with us.

Q4: How long do I need to wait for the shipping?
A4: Sample Order: 7 days after receipt of the full payment. Bulk Order: 7-15 days after receipt of the deposit. (depending on order quantity)

Q5:What is the MOQ?
A5. we accept small order to support your business.

Q6: Is it possible to use our own packing box?

A6: For bulk order, the box can be customized, we will confirm design before packaging. But for the sample order, we can only use our regular box.
