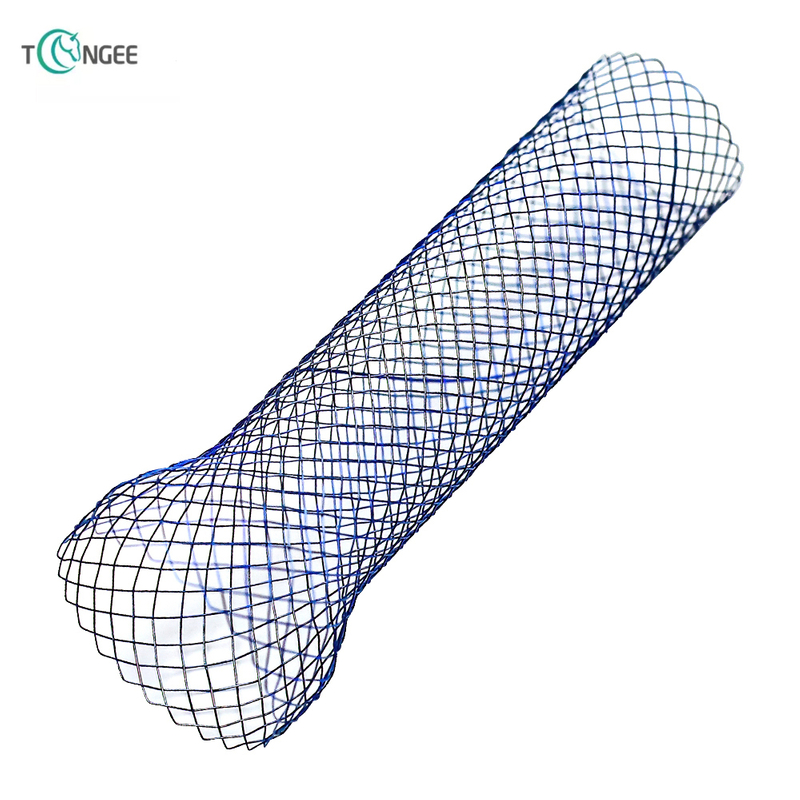

Ce Certificate Medical Nitinol Silicone Covered Esophageal Stents With Delivery System
You are here: Home » Products » Customized stent » Ce Certificate Medical Nitinol Silicone Covered Esophageal Stents With Delivery System

Ce Certificate Medical Nitinol Silicone Covered Esophageal Stents With Delivery System

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Price $95-$295/ Piece

Type: Medical stent
Stent position: esophageal stent
Material: Nitinol super elastic wire
Color: black, blue, etc.
Covering materials: silicone, PE, ePTFE, etc.
Tube length: 700mm
Sterilization: Yes
Stent diameter: 16mm-22mm
Bracket length: 60mm-140mm

  • Esophageal Stents

Availability:

 Banner

Product Description

Usage:

Be used to dilate the esophagus,cardia and anastomotic stoma stenosis and plug esophageal fistula.

Characteristics:

1.The stent will engender a continued gentle radial tensile force, acting on the inner wall of esophageal to expand the stenosis gradually and rebuilt the unobstructed passage.

2.The covered structure effectively avoids the tumor tissue ingrowth, reducing the possibility of second stenosis.

3.Lasso in the near-end of the stent, easy to be recycled.

4.Anti-refulx stents can be chosen to effectively restrain the gastroesophageal reflux disease.

Actual pictures:

SPECIFICATION TABLE

for Umbrella Gastric Fistula Stents

Stent diameter

(mm)

Middle/near-end/far-end

(mm)

Length

(mm)

Specification of introducer system

(Pipe diameter Fr × effective working length mm)

18

16/24

60/80/100/120

24Fr × 700

20

18/26

60/80/100/120

24Fr × 700

for Covered esophagus stent

Stent diameter

(mm)

Middle/end

(mm)

Length

(mm)

Specification of introducer system

(Pipe diameter Fr × effective working length mm)

16

16/24

60/80/100/120/140

24Fr × 700

18

18/26

60/80/100/120/140

24Fr × 700

20

20/28

60/80/100/120/140

24Fr × 700

22

22/28

60/80/100/120/140

24Fr × 700

for Covered Segmented Esophagus Stent

Stent diameter

(mm)

Middle/end

(mm)

Length

(mm)

Specification of introducer system

(Pipe diameter Fr × effective working length mm)

16

16/24

60/80/100/120/140

24Fr × 700

18

18/26

60/80/100/120/140

24Fr × 700

20

20/28

60/80/100/120/140

24Fr × 700

22

22/28

60/80/100/120/140

24Fr × 700

Product Structure:

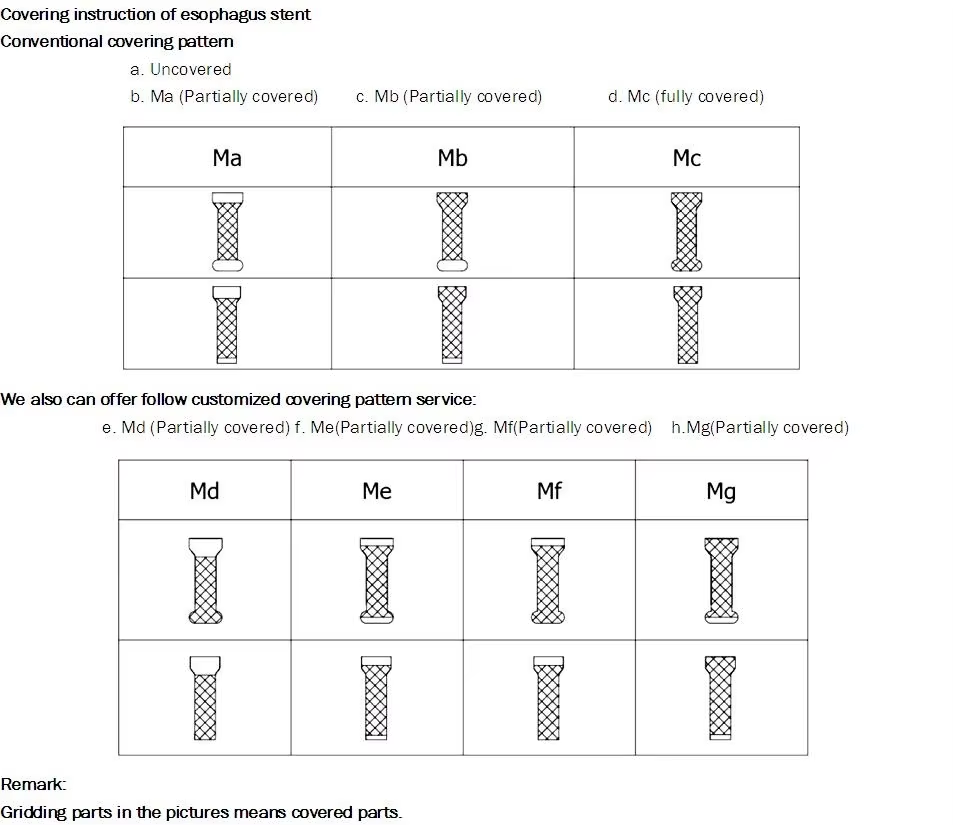

Non-vascular Ni-Ti Alloy Self-expandable Esophageal Stent System (Hereinafter referred to as Esophageal Stent System) is compounded by Esophageal Stent, Introducer System and Guide Wire. See the structural drawing 1 followed. Esophageal Stent is interlaced by the Ni-Ti Alloy Wire. Coating (M) and not coating (N) are divided according to the surface of the stent. According to the shape of the stent’s ends, there can be divided into straight ends, tulip ends, ball ends, cup ends, petal ends, etc. See the table 1: the code of stent shape followed.

12

                                                                                                             Basic Size              See table 2 bellow

Company Code /Product Code -

Introducer Specification

-Stent Specification

Stent Shape

Stent Coating

-Guide Wire Specifications

-Main Diameter(mm)

×Total Length(mm)

HM/401

30F

27F

24F

21F

18F

14×(40-100)

A

C

D

E

F

K

G

H

P

Q

R

S

T

V

W

Uncovered Stent

1"

2"

3"

16×(40-160)

18×(40-160)

20×(40-180)

22×(40-180)

25×(40-120)

28×(40-120)

30×(40-120)

30F

27F

24F

21F

18F

14×(40-100)

A

C

D

E

F

G

H

K

P

Q

R

S

T

V

W

Covered Stent

16×(40-160)

18×(40-160)

20×(40-180)

22×(40-180)

25×(40-120)

28×(40-120)

30×(40-120)

Users can choose various specifications as required.

13

Product Details

10

11人体图

Key Benefits
OEM & ODM Full Range Stent Suture Sizes
Different Techniques Heat treatment covering and polishing
Different Body parts Stent suitable for various parts of body

OEM & ODM Full Range Stent Size for Various Anatomical and Stricture Size
From idea to design, From samples to final products, One stop solution for you

WITH STRONG R&D TEAM GMP, ISO13485, Ensure product realization and quality
